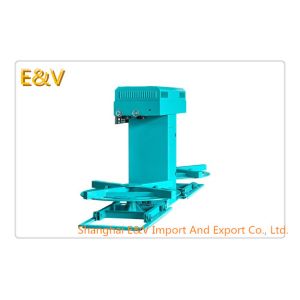

Automatic Non Oxygen Upward Continuous Casting Machine With PLC Control

Brand Name : E&V

Model Number : SYJ

Place of Origin : CHINA

MOQ : 1SET

Supply Ability : 1SET PER MONTH

Delivery Time : 60 days

Packaging Details : standard packing

Type : casting machine

Capacity : 1000~12000mt

color : optional

Contact Now

non-oxygen continuous upcasting machine

Automatic Non Oxygen Upward Continuous Casting Machine With PLC Control

Main Technology Parameter For Copper Rod Up-casting Machine1

Main Technology Parameter For Copper Rod Up-casting Machine2

Main Technology Parameter For Copper Rod Up-casting Machine3

Main Technology Parameter For Copper Rod Up-casting Machine4

Product Tags:

upward continuous casting machine

continuous casting machines

PLC Control Upward Casting Machine

Quality Automatic Non Oxygen Upward Continuous Casting Machine With PLC Control for sale

Automatic Non Oxygen Upward Continuous Casting Machine With PLC Control Images

Inquiry Cart 0

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	JIAXING JICHENG MACHINERY CO.,LTD.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

	2000MTΦ8mm→Φ14.4mm		2000MTΦ17mm→Φ30mm	3000MTΦ8mm→Φ14.4mm
Main para-meter	1	Model: SYJ0408-I2	Model: SYJ0417-I2	Model: SYJ0608-I3
	2	Yearly capacity:2000mt	Yearly capacity:2000mt	Yearly capacity:3000mt
	3	Furnace structure:300type two- body furnace(1melting furnace,1 holding furnace)	Furnace structure:300type two- body furnace(1melting furnace,1 holding furnace)	Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace)
	4	Casting strands:4	Casting strands:4	Casting strands:6
	5	Casting rod diameter : Φ8mm→Φ14.4mm	Casting rod diameter : Φ17mm→Φ30mm	Casting rod diameter : Φ8mm→Φ14.4mm
	6	casting speed:0～3000mm/min	casting speed: 0～1000mm/min	casting speed: 0～3000mm/min
	7	annual working time:7920h	annual working time:7920h	annual working time:7920h
	8	Liquid tracking precision:±2mm	Liquid tracking precision:±2mm	Liquid tracking precision:±2mm
	9	Take-up coil standard: φ700mm×φ1500mm×800mm	Take-up coil standard: φ700mm×φ1500mm×800mm	Take-up coil standard: φ700mm×φ1500mm×800mm
	10	Copper melting velocity:260kg/h	Copper melting velocity:260kg/h	Copper melting velocity:380kg/h
	11	Copper melting power consumption:<350kwh/ton	Copper melting power consumption:<350kwh/ton	Copper melting power consumption:<350kwh/ton
	12	Take-up form: frequency automatic adjust	Take-up form: automatic adjust	Take-up form: frequency automatic adjust
	13	Take-up plate driven approach: PLC control, frequency adjust,automatic coiling	Take-up plate driven approach: pushed by copper rod,manual adjusting	Take-up plate driven approach: PLC control, frequency adjust,automatic coiling
	14	Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist	Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist	Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist
	15	Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet	Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet	Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet
	16	Rod clamping method:air clamping	Rod clamping method: manual clamping	Rod clamping method:air clamping
	17	Operation interface:date display,servo motor controlled by touch screen	Operation interface:date display,servo motor controlled by touch screen	Operation interface:date display,servo motor controlled by touch screen
	18	Total power:150KW AC three-phase 380V	Total power:150KW AC three-phase 380V	Total power:200KW AC three-phase 380V

Price		A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)	A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)	A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)

	3000MT Ф17mm→Ф30mm		5000MT Ф8mm→Ф14.4mm	5000MT Ф17mm→Ф30mm
Main Para-meter	1	Model: SYJ0617-I3	Model: SYJ1008-I3	Model: :SYJ1017-I3
	2	Yearly capacity:3000mt	Yearly capacity:5000mt	Yearly capacity:5000mt
	3	Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace)	Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace)	Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace)
	4	Casting strands:6	Casting strands:10	Casting strands:10
	5	Casting rod diameter : Ф17mm→Ф30mm	Casting rod diameter : Ф8mm→Ф14.4mm	Casting rod diameter : Ф17mm→Ф30mm
	6	casting speed:0～1000mm/min	casting speed:0～3000mm/min	casting speed:0～1000mm/min
	7	annual working time:7920h	annual working time:7920h	annual working time:7920h
	8	Liquid tracking precision:±2mm	Liquid tracking precision:±2mm	Liquid tracking precision:±2mm
	9	Take-up coil standard: φ700mm×φ1500mm×800mm	Take-up coil standard: φ700mm×φ1500mm×800mm	Take-up coil standard: φ700mm×φ1500mm×800mm
	10	Copper melting velocity:380kg/h	Copper melting velocity:650kg/h	Copper melting velocity:650kg/h
	11	Copper melting power consumption:<350kwh/ton	Copper melting power consumption:<350kwh/ton	Copper melting power consumption:<350kwh/ton
	12	Take-up form: automatic adjust	Take-up form: frequency automatic adjust	Take-up form: automatic adjust
	13	Take-up plate driven approach: pushed by copper rod,manual adjusting	Take-up plate driven approach: PLC control, frequency adjust,automatic coiling	Take-up plate driven approach: pushed by copper rod,manual adjusting
	14	Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist	Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist	Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist
	15	Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet	Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet	Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet
	16	Rod clamping method:manual clamping	Rod clamping method:air clamping	Rod clamping method: manual clamping
	17	Operation interface:date display,servo motor controlled by touch screen	Operation interface:date display,servo motor controlled by touch screen	Operation interface:date display,servo motor controlled by touch screen
	18	Total power:200KW AC three-phase 380V	Total power:240KW AC three-phase 380V	Total power:240KW AC three-phase 380V

Price		A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)	A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)	A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)

	8000MTФ8mm→Ф14.4mm		8000MTФ17mm→Ф30mm	10000MTФ8mm→Ф14.4mm
Main para-meter	1	Model :SYJ1608-I3	Model :SYJ1617-I3	Model :SYJ2008-I3
	2	Yearly capacity:8000mt	Yearly capacity:8000mt	Yearly capacity:10000mt
	3	Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace)	Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace)	Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace)
	4	Casting strands :16	Casting strands :16	Casting strands :20
	5	Casting diameter: Ф8mm→Ф14.4mm	Casting diameter: Ф17mm→Ф30mm	Casting diameter: Ф8mm→Ф14.4mm
	6	Casting speed:0～3000mm/min	Casting speed :0～1000mm/min	Casting speed:0～3000mm/min
	7	annual working time:7920h	annual working time:7920h	annual working time:7920h
	8	Liquid tracking precision:±2mm	Liquid tracking precision:±2mm	Liquid tracking precision:±2mm
	9	Take-up coil standard: φ700mm×φ1500mm×800mm	Take-up coil standard: φ700mm×φ1500mm×800mm	Take-up coil standard: φ700mm×φ1500mm×800mm
	10	Copper melting velocity:1020kg/h	Copper melting velocity:1020kg/h	Copper melting velocity:1270kg/h
	11	Copper melting power consumption:<350kwh/ton	Copper melting power consumption:<350kwh/ton	Copper melting power consumption:<350kwh/ton
	12	Take-up form: frequency automatic adjust	Take-up form: automatic adjust	Take-up form: frequency automatic adjust
	13	Take-up plate driven approach: PLC control, frequency adjust,automatic coiling	Take-up plate driven approach: pushed by rod, manual adjusting	Take-up plate driven approach: PLC control, frequency adjust,automatic coiling
	14	Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist	Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist	Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist
	15	Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet	Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet	Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet
	16	Rod clamping method: air clamping	Rod clamping method: manual clamping	Rod clamping method: air clamping
	17	Operation interface:date display,servo motor controlled by touch screen	Operation interface:date display,servo motor controlled by touch screen	Operation interface:date display,servo motor controlled by touch screen
	18	Total power:400KW AC three-phase 380V	Total power:400KW AC three-phase 380V	Total power:500KW AC three-phase 380V

Price		A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)	A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)	A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)

	10000MTФ17mm→Ф30mm		12000MTФ8mm→Ф14.4mm	12000MTФ17mm→Ф30mm
Main para-meter	1	Model :SYJ2017-I3	Model :SYJ2408-I3	Model :SYJ2417-I3
	2	Yearly capacity:10000mt	Yearly capacity:12000mt	Yearly capacity:12000mt
	3	Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace)	Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace)	Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace)
	4	Casting strands:20	Casting strands:24	Casting strands:24
	5	Casting diameter: Ф17mm→Ф30mm	Casting diameter: Ф8mm→Ф14.4mm	Casting diameter: Ф17mm→Ф30mm
	6	Casting speed :0～1000mm/min	Casting speed 0～3000mm/min	Casting speed 0～1000mm/min
	7	annual working time:7920h	annual working time:7920h	annual working time:7920h
	8	Liquid tracking precision:±2mm	Liquid tracking precision:±2mm	Liquid tracking precision:±2mm
	9	Take-up coil standard: φ700mm×φ1500mm×800mm	Take-up coil standard: φ700mm×φ1500mm×800mm	Take-up coil standard: φ700mm×φ1500mm×800mm
	10	Copper melting velocity:1270kg/h	Copper melting velocity:1520kg/h	Copper melting velocity:1520kg/h
	11	Copper melting power consumption:<350kwh/ton	Copper melting power consumption:<350kwh/ton	Copper melting power consumption:<350kwh/ton
	12	Take-up form: automatic adjust	Take-up form: frequency automatic adjust	Take-up form: automatic adjust
	13	Take-up plate driven approach: pushed by rod ,manual adjusting	Take-up plate driven approach: PLC control, frequency adjust,automatic coiling	Take-up plate driven approach: pushed by rod ,manual adjusting
	14	Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist	Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist	Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist
	15	Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet	Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet	Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet
	16	Rod clamping method: manual clamping	Rod clamping method: air clamping	Rod clamping method: manual clamping
	17	Operation interface:date display,servo motor controlled by touch screen	Operation interface:date display,servo motor controlled by touch screen	Operation interface:date display,servo motor controlled by touch screen
	18	Total power:500KW AC three-phase 380V	Total power:600KW AC three-phase 380V	Total power:600KW AC three-phase 380V

price		A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)	A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)	A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)
